- User Interface (UI) code: all code that creates UI and responds to events in the UI, the same as JEE's View and Control
- Data Logic (DL) code: all code that maintains data integrity constraints, a well defined subset of JEE's Model
- Business Logic (BL) code: all other code, the remaining part of JEE's Model, query and/or transaction composing and executing code
I concluded my previous post by showing you how the three Helsinki code classes interact with each other.
Using this picture I can visualize the current trend of building WoD applications as follows:
We do not use the DBMS anymore. All code, in particular all BL and DL code, is implemented within a du-jour technology (XYZ above) that lives outside of the DBMS.
In this post I'd like to explain how this current trend of not using the DBMS (our first observation) combined with the Yafet technology explosion (our third observation) leads to, what I consider, two rather serious issues in todays WoD applications.
Let's start with the first issue.
Scalability and performance issues

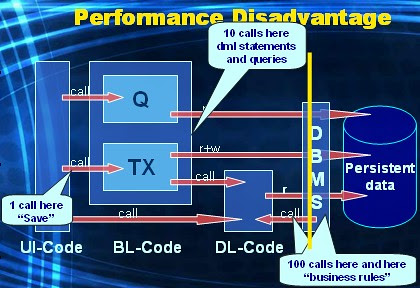

Implementing BL and DL code outside the DBMS leads to chatty applications: these applications call the DBMS many times. Let's demonstrate this using that same picture again. I have drawn a vertical yellow line in it vizualizing the current trend: everything to the left of this line is implemented outside the DBMS.
Say the end user has an order-entry page. He/she enters a few orderlines, and then presses the Save button. This generates one context switch (one call) from UI-code to BL-code. The BL-code then starts processing these orderlines. This causes the generation of an order of a magnitude more than one (which is ten) context switches from BL-code to the DBMS. Per orderline however a couple of constraints are likely to be involved. The majority of these constraints require DL-code that queries the current state of the DBMS. So we have another order of a magnitude more calls to the DBMS.
So one event in the top of the WoD code-stack generates two orders of magnitude more events lower down in the WoD code-stack. Mind you, this is not WoD application software specific, but a general phenomenon in all software. The same is also true for instance in an operating system, which has many layers of code classes too.
In todays WoD applications it is often worse than just the two orders of magnitude described above:
- If you put BL in middle tier, you’ll call the DBMS an order of magnitude more
- If you also put DL in the middle tier, you’ll call the DBMS two orders of magnitudes more
- But, if you then also don’t use SQL effectively, you’ll call the DBMS three orders of magnitudes more
Yes folks. 70,000 SQL select statements to come up with the first twenty customers. I am not kidding you. Unbelievable. Obviously the DBMS is not the problem here: it is servicing 70,000 queries in just less than 60 seconds! The problem is the architecture of the WoD application.
This particular scenario could be done with just three calls to the DBMS which would take a fraction of a second to execute on top of a good relational database design.
- Open cursor
- Perform array fetch of first twenty rows
- Close cursor
But using a 'black box' that is designed to instantanously provide the data that is to be displayed, would be so uncool. No, ... executing 70,000 queries and doing lots of application logic yourself, is way more cool.
This chatty application behaviour leads to:
- more latency hits: every time you go back and forth to the DBMS you will be hit with some latency. If this happens a lot, it starts impacting the performance.
- more 'system' cpu: context switches are accompanied by 'fixed costs' incurred by the network, OS and DBMS software layers that are constantly creating and destroying contexts. System cpu is pure overhead. It's not adding any value to the business using the WoD application.
- more data transfer out: since complex SQL processing (that is any SQL involving more than one table) is effectively performed outside the DBMS, you are sending more data out of the DBMS to that place where the SQL execution plan is now effectively implemented.
What this chatty application behaviour also implies, is that the required iron power to run these applications is absurd. I have seen deployments of not too big WoD applications that require farms of application servers, and n-way RAC configurations on top of expensive mid-end hardware configurations. And when I investigate the load coming from the end-user population I start thinking: had this application been architected differently, my bet is it would run just smoothly on a single, let's say, 2 quad-core Intel server that can be bought for about 10K Euro.
Let's move on to the second issue caused by the current trend of not using the DBMS and the ongoing Yafet technology explosion.
WoD application TCO (Total Cost of Ownership)
The second issue is about how the current trend of building WoD applications is impacting the TCO of such an application. Given the ongoing Yafet technology explosion, if you implement all BL and DL code in the volatile XYZ technology, then:
- your application is legacy (technology-wise) within a year
- it will be hard to find XYZ knowledgeable people
- it will be very, very hard to migrate to the next sexy Yafet since it involves migrating BL and DL code (often the only option is to throw away, and code again)
So in conclusion:
- Todays WoD applications suffer from performance issues. This is caused by not pushing down work that could have been taken care of lower in the technology stack, which in turn causes orders of magnitudes more events (context switches) lower down in the technology stack.
- Todays WoD applications have a high cost of ownership. This is due to the high technology change rate at the upper end of the technology stack, where all application logic is implemented (which changes a whole lot less fast). Businesses are faced with either, having to rebuild major parts of the application using the newest Yafet, or having to pay high rates for scarce programmers still willing to work in the old-fashioned Yafet.
The ugly state of affairs with regards to todays WoD applications is not in the least also caused by that other popular belief. The one that dictates applications should be built in a database independent manner. In the Helsinki declaration I cannot but conclude that quite the opposite is what our customers need. They do not need DBMS independence, by far not. They need Yafet independence. Yafets change all the time, they come and go. The DBMS is probably the most stable factor within the IT landscape of a business. So we need to architect their WoD applications in such a way that they (the applications) are as immune as possible for this ongoing technology change outside the DBMS.
So what this all leads to is that BL and DL code should be implemented inside the DBMS.
Before I talk more about that, the next post will first map the Helsinki code classes accross the client, middle and data tiers (like I did with the MVC code classes here) and revisit the seven thin/fat-thin/fat-thin/fat alternatives again.
